Fashion Classic Design
The safest & most reliable IC solution with complete protection. It makes every smartphone as powerful as it is. This is why we love it deeply.
A reliable GaN charger means that it’s always long lasting without waste of any power you didn’t use, so that you will be confident to carry it with you all the time. If offers fast charges for smartphones & tablets by delivering faster power than others. With the high efficient charger IC, you will get faster charges rapidly than ever before. That means you get the best performance and efficiency when you need it.

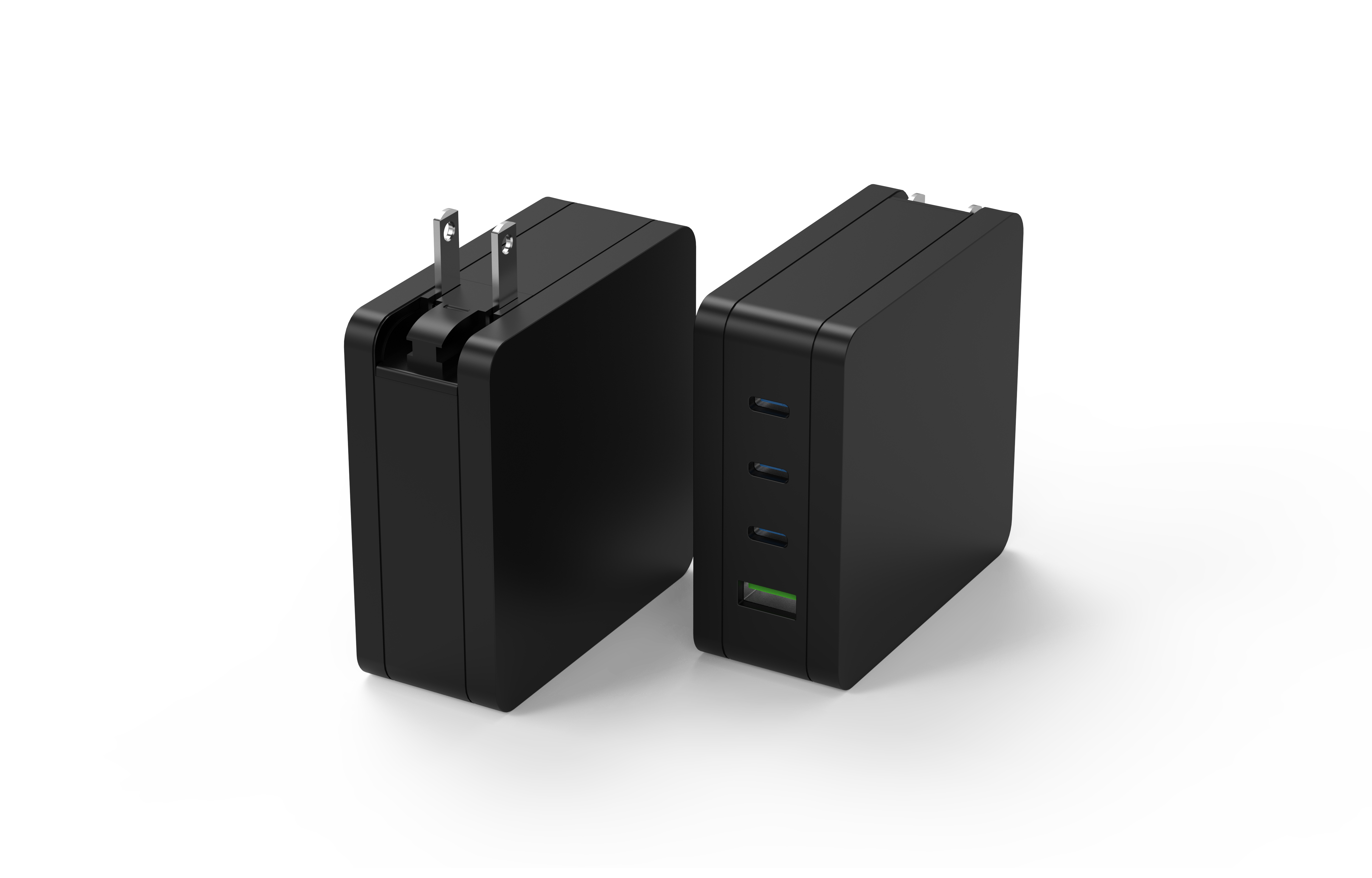

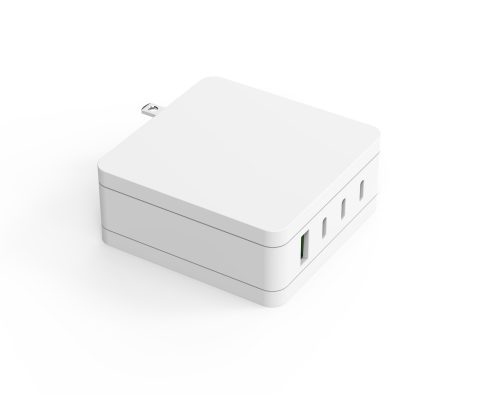

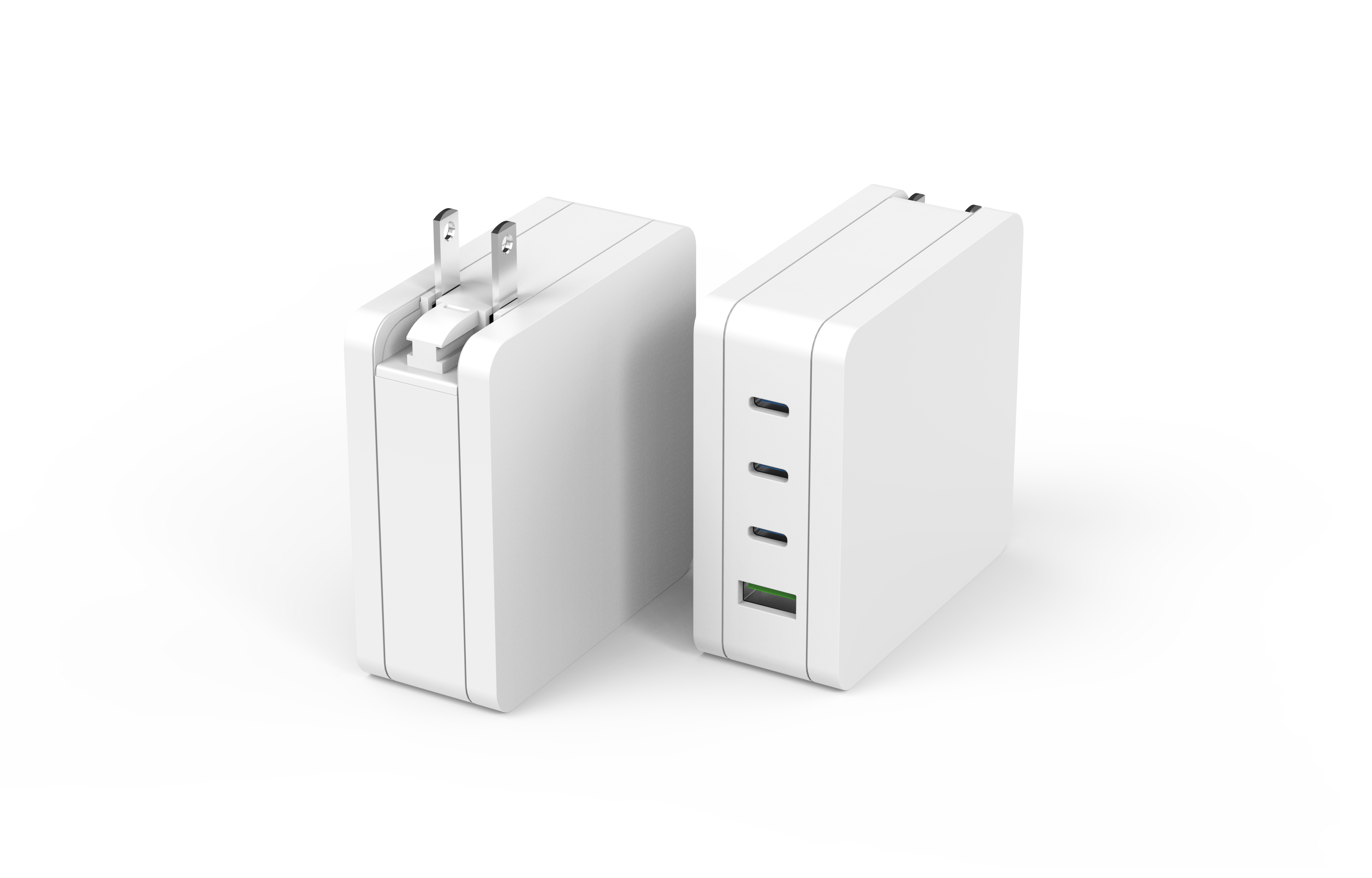

| Product Name | GaN Charger |
| Model Number | UCP1402 |
| Rated Input | AC 100-240V~50/60Hz 1.5A (Max.) |
| Rated Output1 | USB-C1 PD3.0+QC4+ 5V/3A ; 9V/3A ; 12V/3A ; 15V/3A ; 20V/5A, 28V/5A (Max. 140W) |
| Rated Output2 | USB-C2 PD3.0+QC4+ 5V/3A ; 9V/3A ; 12V/3A ; 15V/3A ; 20V/5A (Max. 100W) |
| Rated Output3 | USB-C3 PD3.0+QC4+ 5V/3A ; 9V/3A ; 12V/3A ; 15V/3A ; 20V/5A (Max. 100W) |
| Rated Output4 | USB-A QC3.0 5V/3A ; 9V/3A ; 12V/2.5A ; 15V/2A ; 20V/1.5A (Max. 30W) |
| USB-C1+USB-C2 | 65W+65W (Max. 130W) |
| USB-C1+USB-C3 | 100W+30W (Max. 130W) |
| USB-C2+USB-C3 | 30W+100W (Max. 130W) |
| USB-C1/C2+USB-A | 100W+30W (Max. 130W) |
| USB-C3+USB-A | 5V/3A (Max. 15W) |
| USB-C1+USB-C2+USB-C3 | 65W/45W (C1) + 45W/65W (C2) + 20W (C3) (Max. 130W) |
| USB-C1+USB-C2+USB-A | 65W/45W (C1) + 45W/65W (C2) + 18W (A) (Max. 128W) |
| USB-C1/C2+USB-C3+USB-A | 100W + 5V/3A (Max. 115W) |
| USB-C1+USB-C2+USB-C3+USB-A | 70W/45W (C1) + 45W/70W (C2) + 5V/3A (C3) (Max. 130W) |
| Working Temperature | 0~35C |
| Dimension | 75(L) x 75(W) x 32(H) mm |
| Unit Weight | 240g |
| Available Color | Black / White |
| Fast Charge Protocol | PPS/PD3.0/PD2.0, QC4+/QC4.0/QC3.0/QC2.0, PE2.0/PE1.1, AFC, FCP, SCP, SFCP, Apple 2.4A |
